Bosch GLL 3-80P self leveling laser plus laser receiver plus Wall Mount +LR2 + L-BOXX

(1 review) Write a Review
SKU:
060106330A
Weight:
1.00 KGS
Shipping:
Calculated at Checkout
  • Bosch GLL 3-80p self leveling laser plus laser receiver plus  Wall Mount +LR2 + L-BOXX 1
  • Bosch GLL 3-80p self leveling laser plus laser receiver plus  Wall Mount +LR2 + L-BOXX 2
  • Bosch GLL 3-80p self leveling laser plus laser receiver plus  Wall Mount +LR2 + L-BOXX 3
₦221,342.50

Description

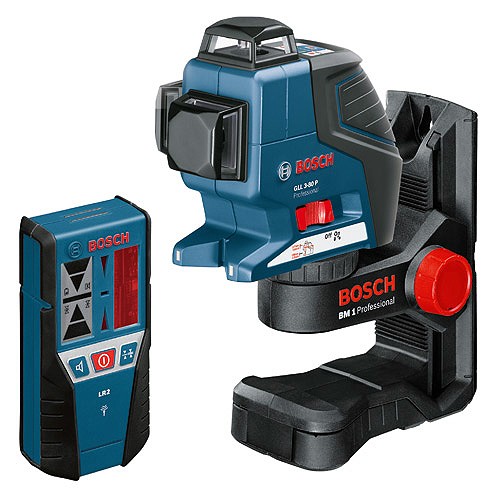

Bosch GLL 3-80p self leveling laser plus laser receiver plus  Wall Mount +LR2 + L-BOXX

bosch-gll-3-80-self-leveling-laser-plus-laser-receiver-plus-wall-mount-lr2-l-boxx-3.jpg

This combo Bosch GLL 3-80 PBMCCLR 360 Degree Vertical and Horizontal Line Laser 060106330A 3-Plane cross line laser, dia 40m, 360 degrees in 1 x horizontal and 2 x vertical planes + wall mount c/w ceiling clamp + receiver + L-Boxx is a great self-leveling instrument.

Features of this combo with Bosch GLL3-80

  • All-in one solution
  • Highly compact multi-line laser
  • Extremely easy to use offering many solutions
  • Magnet for an easy attachment onto the metal guiding rail
  • 360° multi-line laser for all interior applications
  • All-in one solution' - horizontal levelling, vertical alignment, plumb point transfer and squaring - all around
  • Long working range of 20 m or 80 m when used with the optional LR 2 receiver
  • Simple to use and install
  • Levelling mode Self-levelling through pendulum inside

Bosch BM1

  • Can be quickly mounted using screws or nails
  • Strong magnets for secure mounting
  • Quick adjustment of the working height
  • Retractable feet for usage as a mini tripod

Bosch LR2 Receiver

  • The LR 2 Receiver Professional makes it possible for several persons to work simultaneously in a large radius with only one instrument
  • Handy receiver for indoor and outdoor use for ranges of up to 50 m
  • Alignment of the laser beam level, optical (display and LEDs) and acoustic, for working in various lighting conditions
  • Top-mounted magnets for better fixing
  • Dust and splash protection (IP 54)

Comes With:

  • 4 x 1.5 V LR6 (AA)
  • L-Boxx
  • LR2 Receiver
  • 1 x 9 V 6LR61 Block
  • BM1 Wall Mount

Product Specifications:

Bosch GLL3-80P

  • Laser diodes/Laser class 640 nm, <1mw, Class 2
  • Levelling accuracy +/− 0.2 mm/m
  • Levelling range Up to +/− 4°
  • Levelling time < 4 s
  • Working range w/o receiver 0-20 m; with receiver 5-80m
  • Line width ≤ 5 mm @ 1 m
  • Acoustic signal > 80 db @ 1 m
  • Working range ~ 10° ~ + 40° C
  • Storage temperature ~ 20° ~ + 70° C
  • Ingress protection IP 54
  • Power supply 4 x 1.5V LR6 (AA) batteries
  • Operating time 18 h in 1-line mode, 9 h in 2 line mode, 5 h in 3-line mode
  • Tripod adapter ¼" & ?"
  • Working range with receiver Ø: 80m
  • Working range without receiver Ø: 20m
  • Levelling accuracy: ± 0.2 mm / m
  • Self-levelling range Up to: ± 4°
  • Laser diode / class: 640 Nm / <1 mW/2
  • Dust and splash protection: IP54
  • Maximum Operating time: 23 hours
  • Dimensions: Length 159 x Width 75 x Height 141mm

Bosch BM1

  • Maximum load - 1.0kg
  • Thread for laser fixing - 1/4"
  • Weight - 0.53kg
  • Adjustable height - 7cm

Bosch LR2 Receiver

  • Range: 5 - 50 m
  • Power supply: 1 x 9 V 6LR61 Block
  • Dust and splash protection: IP 54
  • Weight, approx: 200 G
  • Length: 74mm
  • Width: 41mm
  • Height: 150mm
  • Measuring accuracy (fine/rough): ± 1mm/± 3mm

Contact us GZ industrial Supplies or download the manual here User manual: GLL 3-80 P Professional (PDF 25 MB)
