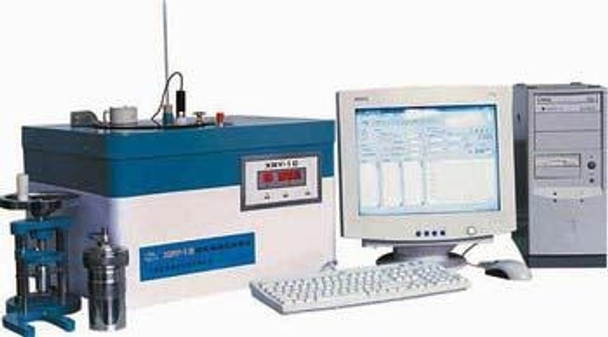

GDY-1C Oxygen Bomb Calorimeter

GDY-1C Oxygen Bomb Calorimeter

GZ Industrial Supplies is the distributor and supplier of Testing Equipment in NIgeria. Our GDY-1C Oxygen Bomb Calorimeter is designed and made as per the national standard of Peoples Republic of China GB/T213-2008 Test Method for Calorific Value of coal, GB/T384-1988 Test Method for Calorific Value of Petroleum Products and Calibration Regulation of Peoples Republic of China JJG672-2001 Oxygen Bomb Calorimeter, as well as Shanghai enterprise standard Q/YXYY 10 XRY Series Oxygen Bomb Calorimeter.

 Technical Features:

1. The instrument adopts technology of single chip microcomputer and high performance A/D conversion device. It is a highly intelligent instrument.

2. The instrument is equipped with a brand notebook PC.

3. The test procedure is fully automatic. After placing sample and inputting right parameters, the instrument will finish all the procedures without manual interference. It will print the test data directly after test is finished.

Technical Specifications:

1. Heat capacity: 14000 J/K15000 J/K

2. Measuring range: (1035)

3. Resolution: 0.001 K

4. Repeatability error: 0.2% (Grade C)

5. Pressure endurance of oxygen bomb: 20 MPa

6. Ambient temperature: 10 28

 7. Relative humidity: 85%

8. Power supply: AC 220V±5%, 50 Hz

9. Overall dimension: 600mm*460mm*430mm

  Contact us for further details and availability within  your location.
