HYPERTHERM POWERMAX 65 AIR PLASMA CUTTING MACHINE
- SKU:
- hypertherm-PMX65
- Weight:
- 29.00 KGS
- Shipping:
- Calculated at Checkout
Description
HYPERTHERM POWERMAX 65 AIR PLASMA CUTTING MACHINE
GZ Industrial Supplies is a distributor of Hypertherm Powermax products in Nigeria, Our HYPERTHERM Powermax 65 AIR PLASMA CUTTING MACHINE is a handheld or mechanized plasma system for cutting or gouging metals
The Powermax65® plasma system is a versatile tool for heavy-duty cutting and gouging in demanding environments. Designed to maximize uptime and productivity, the system offers the latest technological innovations, such as Smart Sense™ technology to automatically adjust the gas pressure. With a variety of Duramax™ torch styles, operators can easily select exactly the right tool for the job: hand cutting or gouging, portable automation, X-Y table, and robotic cutting or gouging.
BENEFITS OF HYPERTHERM POWERMAX 65 AIR PLASMA CUTTING MACHINE.
Maximum productivity

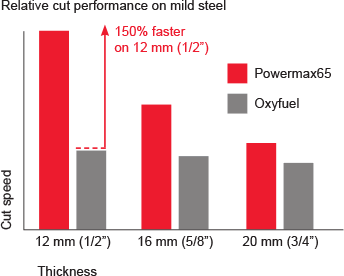

- Finish jobs faster with cut speeds one and a half times greater than oxyfuel on 12 mm (1/2”) mild steel
- Superior cut and gouge quality let you spend less time on grinding and edge preparation
- Multiple, easy-to-use torch styles let you tackle a wide variety of jobs using the same system
Easy-to-use for cutting and gouging
- No need to change the air pressure – Smart Sense™ technology ensures that it is always correctly set
- SpringStart™ technology ensures consistent starting and a more reliable torch
- Drag cut at full output with a patented shield that reduces dross buildup for smoother cutting
Rugged and reliable
- Hypertherm Certified™ reliability ensures peak performance even in the harshest environments
- Duramax™ torches are designed for high-impact and heat resistance
SPECIFICATION OF HYPERTHERM POWERMAX 65 AIR PLASMA CUTTING MACHINE
Input voltages | CSA | 200 – 480 V, 1-PH, 50/60 Hz 200 – 600 V, 3-PH, 50/60 Hz |
---|---|---|
CE | 380/400 V, 3-PH, 50/60 Hz | |
Input Current @ 9 kW | CSA | 200/208/240/480 V, 1-PH, 52/50/44/22 A 200/208/240/480/600 V, 3-PH, 32/31/27/13/13 A |
CE | 380/400 V, 3-PH, 15.5/15 A | |
Output current | 20 - 65 A | |
Rated output voltage | 139 VDC | |
Duty cycle @ 40°C (104°F) | CSA | 50% @ 65 A, 230 – 600 V, 1/3-PH 40% @ 65 A, 200 – 208 V, 1/3-PH 100% @ 46 A, 230 – 600 V, 1/3-PH |
CE | 50% @ 65 A, 380/400 V, 3-PH 100% @ 46 A, 380/400 V, 3-PH |
|
Open circuit voltage (OCV) | CSA | 295 VDC |
CE | 270 VDC | |
Dimensions with handles | 500 mm (19.7") D; 234 mm (9.2") W; 455 mm (17.9") H |
|
Weight with 7.6 m (25') torch | CSA | 29 kg (64 lbs) |
CE | 26 kg (57 lbs) | |
Gas Supply | Clean, dry, oil-free air or nitrogen | |
Recommended gas inlet flow rate / pressure |
Cutting: 189 l/min (400 scfh; 6.7 scfm) @ 85 psi (5.9 bar) Gouging: 450 scfh; 212 l/min (7.5 scfm) @ 70 psi (4.8 bar) |
|
Input power cable length | 3 m (10') | |
Power supply type | Inverter - IGBT |
Engine-driven generator operation
Engine drive rating | System output current | Performance (arc stretch) |
---|---|---|
15 kW | 65 A | Full |
12 kW | 65 A | Limited |
12 kW | 40 A | Full |
8 kW | 40 A | Limited |
8 kW | 30 A | Full |
Environmental stewardship is a core value of Hypertherm. Our Powermax products are engineered to meet and exceed global environmental regulations including the RoHS directive.
Capacity | Thickness | Cut speed |
---|---|---|
Cutting |
||
Recommended | 20 mm (3/4") | 500 mm/min (20 ipm) |
25 mm (1") | 250 mm/min (10 ipm) | |
Severance (hand cutting) | 32 mm (1-1/4") | 125 mm/min (5 ipm) |
Pierce * | 16 mm (5/8") |
* Pierce rating for handheld use or with automatic torch height control
Capacity | Metal removal rate | Groove profile |
---|---|---|
Gouging |
||
Typical gouge | 4,8 kg/hr (10.7 lbs/hr) |
3,5 mm D x 6,6 mm W (0.14" D x 0.26" W) |
Production cut chart
Material | Thickness | Current | Production cut speed * | ||
---|---|---|---|---|---|
inches | mm | amps | ipm | mm/min | |
Mild steel | 10 GA | 3 | 65 | 224 | 6100 |
1/4 | 6 | 65 | 116 | 3240 | |
3/8 | 10 | 65 | 62 | 1500 | |
1/2 | 12 | 65 | 40 | 1140 | |
5/8 | 16 | 65 | 26 | 650 | |
Stainless steel | 10GA | 3 | 65 | 296 | 8260 |
1/4 | 6 | 65 | 96 | 2850 | |
3/8 | 10 | 65 | 52 | 1250 | |
1/2 | 12 | 65 | 32 | 920 | |
Aluminum | 1/8 | 3 | 65 | 336 | 8800 |
1/4 | 6 | 65 | 152 | 4400 | |
3/8 | 10 | 65 | 68 | 1650 | |
1/2 | 12 | 65 | 48 | 1330 |
*Production cut speeds are the result of Hypertherm's laboratory testing.
Production speeds are approximately 80% of maximum.
For optimum cut quality, cutting speeds may vary based on different cutting applications.
Refer to the operator manual for more details.
