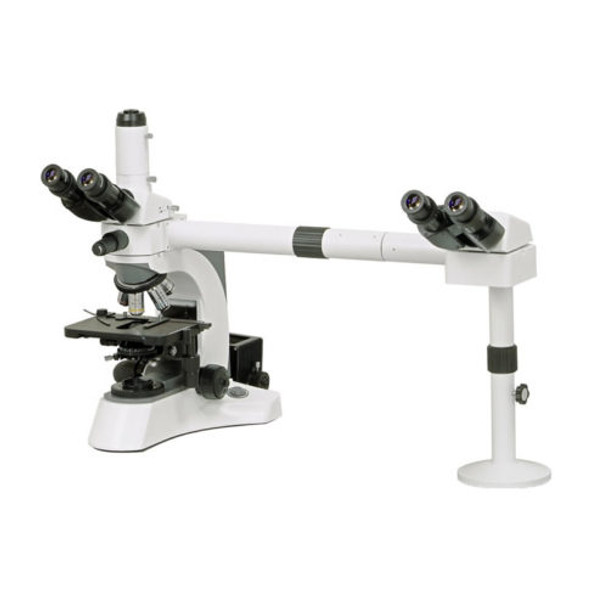

MON013 Two-Person Viewing Microscope
Product Description:
Multi-viewing Microscope allows people observation at the same time.
With the features of Infinite Optical System, Effective Illumination, LED Pointer and images Coherence, it is widely used in Clinic, Scientific Research and Teaching Demonstration.
Technical Specifications:
Optical System |
lnfinite Optical System Viewing Head |
Head |
Compensation Free trinocular Head,lnclined at 30degree,360degree Ratatable,lnterpupilary Distance 48-75mm |
1pc
|
Compensation Free binocular Head,lnclined at 30degree,360degree Ratatable,lnterpupilary Distance 48-75mm |
1pc
|
Eyepiece |
Extra Wide Field Eyepiece WF10X/20 |
4pcs
|
lnfinite Plan Achromatic Objective |
4X |
10X |
40X(S) |
100X(S,Oil) |
Nosepiece |
Inverse Quintuple Nosepiece Objective |
Stage |
Double Layers Mechanical Stage 185x142mm, Moving Range 75x55mm |
Condenser
|
Condenser swing condenser N.A.0.9/0.25 |
Focusing |
Coaxial Coarse&Fine Focus Adjustment,Fine Division 0.002mm |
Kohler lllumination |
External lllumination,Halongen Lamp 12v50w |
Pointer |
Green LED Pointer , Brightness Adjustable |
|
Contact us for further details and availability within your location.
