Mon Scientific
MON014 Three-Person Viewing Microscope
- Weight:
- 11.00 KGS
- Shipping:
- Calculated at Checkout
Description
MON014 Three-Person Viewing Microscope
Product Description:
Multi-viewing Microscope allows people observation at the same time.
With the features of Infinite Optical System, Effective Illumination, LED Pointer and images Coherence, it is widely used in Clinic, Scientific Research and Teaching Demonstration.
Technical Specification:
| Optical System | Infinite Optical System | S | S | S |
|
Viewing Head |
Compensation Free Trinocular Head, Inclined at 30°, 360° Rotatable, Interpupilary Distance 48-75mm | 1PC | 1PC | 1PC |
| Compensation Free Binocular Head, Inclined at 30°, 360° Rotatable, Interpupilary Distance 48-75mm | 4PCS | 2PCS | 1PC | |
| Eyepiece | Extra Wide Field Eyepiece EW10×/ 20 | 10PCS | 6PCS | 4PCS |
| Nose-piece | Inverse Quintuple Nose-piece | S | S | S |
| Objective | Infinite Plan Achromatic Objective 4×, 10×, 40×, 100× | S | S | S |
| Condenser | Swing Condenser N.A.0.9/ 0.25 | S | S | S |
| Focusing | Coaxial Coarse & Fine Focus Adjustment, Fine Division 0.001mm | S | S | S |
| Stage | Double Layers Mechanical Stage 185×142mm, Moving Range 75×55mm | S | S | S |
| Kohler Illumination | External Illumination, Halogen Lamp 24V/ 100W | S | S | S |
| Pointer | Green LED Pointer , Brightness Adjustable | S | S | S |
| Dual Color Pointer , Brightness Adjustable | – | – | – | |
| Photo Attachment | – | – | – | |
| Video Adapter | C Mount 1× | – | – | – |
| C Mount 0.5× | – | – | – |
Contact us for further details and availability within your location.
Related Products
Related Products

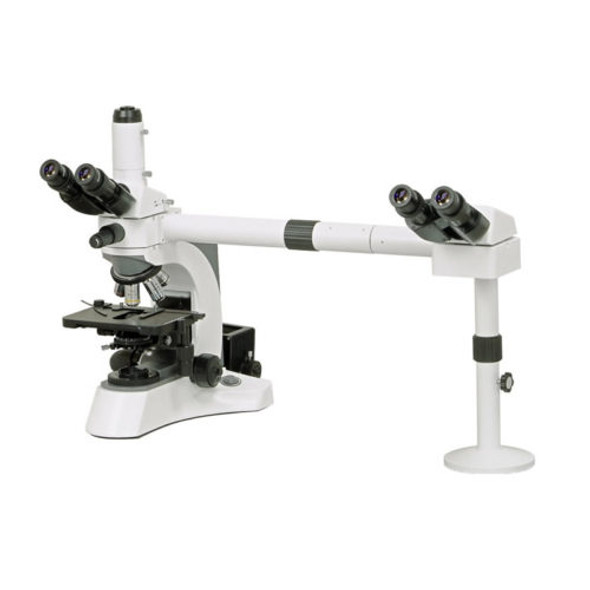

MON013 Two-Person Viewing Microscope
