Difference Between UPS and Inverter

Today electricity has become a necessity. All most all of our day to day works requires electricity. We need electricity for laptops, washing machines, electric cookers, Mobile phones, Coolers, etc. If this electricity gets shut down it will cause great disorder. To smoothly run these devices even after the blackout of electricity and get uninterrupted, electrical power systems are discovered. UPS and Inverter are an example of such discoveries. Although these devices work for the same intention, however, people remain confused with the difference between a UPS and an inverter, and they wonder what makes them different. This article will highlight the differences between these two devices so that you can make better use of them, having known their features. Before looking into their differences lets know more about there working.

Buy Online... Inverter Sine Wave 900VA / 12V Lento

UPS

UPS stands for Uninterrupted Power Supply. As the name implies, it is used to stop the interruption caused to devices during the blackout of electricity. This system is mainly used with computers where it provides the computer sufficient amount of power to save the data and safely shut down when sudden power blackout occurs.

UPS consists of a rectifier to convert AC into DC and charge the battery. This battery is connected to the inverter which converts the DC into AC. A controller is provided to control the functioning of the system.

UPS can provide power supply only up to 10 to 15 minutes. So, this is mainly intended for IT systems and electronic devices that can get damaged with sudden power out conditions.

Inverter

Inverters are power electronic devices. The main purpose of these device is to convert DC to AC. In inverters, AC power supply is taken from AC mains and converted into DC by a rectifier.

This converted DC charges a battery. As the industrial and household systems work on AC power, the DC from the battery is converted into AC by the inverter. During the power cut, the inverter receives supply from the battery and provides power supply to the electrical equipment. These systems are used in the household to get the power supply after the blackout of electricity. For working of Inverters, no external power supply is needed.

Buy Online... Lento Tubular Battery 220ah 12v

Key Differences Between UPS and Inverter

1) Use Case & Backup Time

If you don’t have power cuts often, you can use a UPS to safeguard your computer from any major hardware failure. The switch to UPS is almost instant, and this doesn’t shut down your computer. UPS typically offers a backup of around 30 minutes or so.

The switching of UPS from the mains supply to the battery is immediate, whereas the Inverter takes more than UPS. For computers, the switching time of inverter is more than it can handle, and it will usually reboot due to the interrupted supply. Thus, UPS are preferred for PC and Inverter for homes as lightbulbs will not care about the switching delay.

UPS can provide backup for your devices for around 15 minutes, whereas an Inverter can provide backup for hours depending on its capacity. The inverter allows you to power the complete house depending on the capacity. So if your area has a more extended power cut, you can use it at least keep a couple of lights and fan running.

2) Maintenance & Lifespan

UPS are maintenance-free. Inverters need more wiring and need to be filled with distilled water at regular intervals. However, I have noticed that some of the advanced versions of inverters have freed consumers from distilled water maintenance.

The disadvantage of UPS is that since the battery is continuously being charged and discharged even when there’s no power cut. Because of this, the battery will wear out 4-5 times quicker than inverter battery.

3) Price

Compared to Inverters, UPS are cheaper. There are different types of UPS and inverters available, and they are available at competing prices.

The factors to look into when buying them includes backup time, capacity, charging time, power requirement, crating (quantity of charge in a fully charged cell), and warranties.

Buy Online... Cleon Solar and Inverter Tall Tubular battery 12V 240AH

Other difference between the two devices are:

UPS has a rectifier for providing the backup power to the system whereas the inverter converts DC into AC.

The main function of the UPS is to store the electric supply whereas the inverter converts the AC power into DC power.

During the power outages, the UPS immediately switch over from the main supply to the battery whereas the inverter has a time delay.

The UPS provides the electrical backup power, and the inverter provides the electronics backup power supply.

The Offline, Online and Line Interruptive are the types of the UPS whereas the inverter is of two types, i.e., the standby inverter and Grid tie inverter.

The UPS is directly connected to the home appliances whereas the inverter is first linked to the battery and then attached to the appliances circuit.

The UPS is more expensive as compared to the inverter.

The rectifier and battery are inbuilt in the circuit of UPS. The rectifier converts the AC into DC and stores the energy into battery whereas the inverter has an external battery for storing the DC power.

The UPS provides the backup supply for very short duration whereas the inverter supplies the power for an extended period.

The UPS does not have voltage fluctuation because their input is independent of the output supply whereas the inverter has voltage variation.

The UPS is used for the domestic purpose, in offices and industries whereas the inverter is used in the office.

Though designed with the same aim to substitute electricity, inverters, and UPS differ in their working principle, type of application and power sources. UPS have complex wiring and are expensive. Whereas generators and inverters are less expensive.

UPS contains built-in batteries whereas for inverters batteries are external. While UPS is directly plugged into appliances, inverters are connected to the main power line of the household to send power to appliances. Though the working of inverter and UPS are similar the main difference is time taken by them to switch ON.

After detecting an interruption in power UPS is switched ON immediately whereas inverter uses some delay to switch ON. Thus UPS is used for sensitive systems such as a computer which cannot afford the sudden power loss.

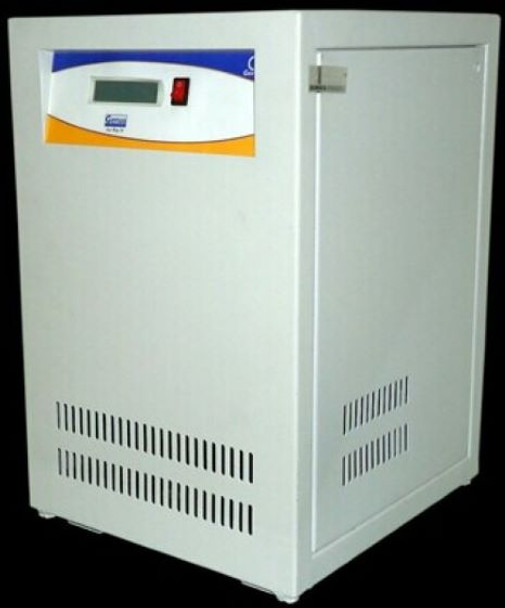

Buy Online... Inverter 10kva/180v Genus

Advanced Comparison: UPS vs Inverter

To make your article the best resource on this topic, consider adding the following sections:

1. Technical Specifications Comparison

Feature
UPS
Inverter
Power Output
Pure Sine Wave
Modified or Pure Sine Wave
Typical Capacity Range
500VA - 20kVA
300VA - 10kVA
Response Time
2-12 milliseconds
15-50 milliseconds
Efficiency
Harmonics
Overload Capacity
125-150% for 1 minute
110-120% for 5 minutes

2. Applications and Use Cases

UPS:

• Data centers and server rooms
• Medical equipment (e.g., life support systems)
• Industrial control systems
• Telecommunications infrastructure
• Financial institutions (ATMs, trading systems)

Inverter:

• Residential backup power
• RVs and boats
• Solar power systems
• Remote work sites
• Small businesses with non-critical loads

3. Advanced Features Comparison: UPS vs Inverter

Both UPS (Uninterruptible Power Supply) systems and inverters have evolved significantly, incorporating advanced features to enhance their performance, efficiency, and user experience. Let's explore the key advanced features of each:

UPS Advanced Features

1. Automatic Voltage Regulation (AVR)
   • Stabilizes incoming voltage fluctuations without switching to battery power
   • Extends battery life by reducing unnecessary discharges
   • Protects connected equipment from voltage sags and surges
2. Power Factor Correction
   • Improves the power factor of the connected load
   • Reduces harmonics and improves overall system efficiency
   • Helps meet utility requirements and potentially reduces electricity costs
3. Battery Health Monitoring
   • Continuously monitors battery condition and performance
   • Provides early warning of battery degradation or failure
   • Allows for proactive maintenance and replacement scheduling
4. Load Shedding Capability
   • Prioritizes critical loads during extended power outages
   • Automatically shuts down non-essential equipment to extend runtime for crucial systems
   • Customizable load shedding scenarios based on user preferences
5. Network Management
   • SNMP (Simple Network Management Protocol) compatibility for remote monitoring
   • Integration with data center infrastructure management (DCIM) systems
   • Email or SMS alerts for power events and system status
6. Scalability (Parallel Operation)
   • Allows multiple UPS units to be connected in parallel for increased capacity or redundancy
   • Enables "N+1" redundancy configurations for critical applications
   • Facilitates easy expansion of power protection as needs grow
7. Energy Efficiency Modes
   • ECO mode for improved efficiency during normal operation
   • Adjustable high-efficiency thresholds to balance protection and energy savings
   • Load-based efficiency optimization

Inverter Advanced Features

1. Solar Charge Controller Integration
   • Built-in MPPT (Maximum Power Point Tracking) for optimal solar panel performance
   • Seamless switching between solar, battery, and grid power sources
   • Energy management features to prioritize solar power usage
2. Multiple AC Outputs
   • Separate programmable outputs for different load types
   • Ability to prioritize critical loads during power outages
   • Customizable output voltages and frequencies for international use
3. Programmable Operating Modes
   • User-definable parameters for charging profiles, load management, and power source priorities
   • Scheduling features for time-of-use optimization
   • Adaptive modes based on historical usage patterns
4. Low Voltage Disconnect (LVD)
   • Protects batteries from over-discharge
   • Adjustable LVD thresholds based on battery type and user preferences
   • Automatic reconnection when battery voltage recovers
5. Remote Monitoring and Control
   • Mobile apps for system monitoring and control
   • Web-based interfaces for detailed analytics and configuration
   • Integration with home automation systems (e.g., smart home platforms)
6. Grid Support Features
   • Grid-interactive modes for peak shaving and load shifting
   • Frequency and voltage ride-through capabilities
   • Virtual inertia provision for grid stability (in advanced models)
7. Hybrid Compatibility
   • Seamless integration with different energy sources (solar, wind, generator)
   • Intelligent power source selection based on availability and efficiency
   • AC coupling capability for retrofit applications

4. Total Cost of Ownership Analysis

Provide a comprehensive breakdown of costs associated with both UPS and inverter systems:

1. Initial purchase cost
2. Installation expenses
3. Battery replacement frequency and cost
4. Maintenance requirements
5. Energy efficiency and operating costs
6. Expected lifespan of the system

5. Future Trends and Innovations

Discuss emerging technologies and trends in both UPS and inverter markets:

• Integration with smart home/building systems
• IoT connectivity and remote management
• Improved energy storage technologies (e.g., lithium-ion, flow batteries)
• Hybrid UPS-inverter systems
• Microgrid integration capabilities
• AI-driven predictive maintenance

6. Environmental Impact and Sustainability

Compare the environmental aspects of UPS and inverter systems:

• Energy efficiency and power consumption
• Battery disposal and recycling processes
• Integration with renewable energy sources
• Carbon footprint over the lifecycle of the product
• Eco-friendly manufacturing initiatives by leading brands

7. Regulatory Standards and Compliance

Discuss relevant standards and certifications for both UPS and inverter systems:

• IEC 62040 (UPS performance standards)
• EN 50091 (European UPS standards)
• UL 1741 (Inverter safety standards)
• IEEE 1547 (Standard for interconnecting distributed resources)
• Energy Star certification for UPS efficiency

Conclusion

In our daily lives, we are heavily dependent upon appliances that run on electricity such as fans, lights, Laptops, AC, fridge, and so on. Inverters and UPS are used to support power supplies when there is power outage either from the Supply Authority or Generator House.

Typically, A UPS is a device that helps in keeping an electrical system for some minutes whenever there is power failure. It makes use of battery which helps to continue power when there is power outage.

While an Inverter is an electronic gadgets which is used to supply power by converting the direct current of a battery into alternating current. Whenever there is a power cut, electricity supply to these appliances is cut off and they stop working. However, if you have a backup supply in the form of devices such as UPS or inverter, you have ensured uninterrupted supply of power to your appliances and will not be upset with power cuts. The major difference however between this two devices is that, Inverter is not able to provide any supply but through DC source only.

If you need prolonged backup power for your home or business, or you wish to protect your sensitive equipment at all times, contact GZ Industrial Supplies today. We have the best UPS and Inverter from notable brands in stock.

.

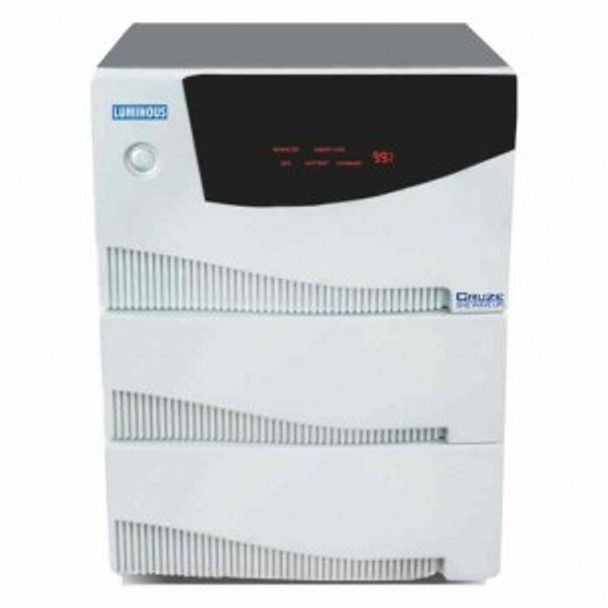

Buy Online... Inverter 5kVA/96V Luminous
