Types of Electrical Tools

Electrical tools are tools used to work on an electrical system. These can include a wide range of tools such as tape, hammer, utility knife, screwdriver etc.

We all know that the right tool can make all the difference when it comes to completing a project. They make the difference in terms of professionalism. The bottom line is, the better the tool, the better the outcome.

GZ Industrial Supplies stock the best brands of electrical tools in the industry at the best prices. This way you can get to work and get the job done correctly. The first step in determining the electrical tools you will need is to determine what task needs to be completed. Not every job will require specialty tools but using the right tool for the job will make all the difference. Take a look below to find out the basic types of electrical tools we have, and you can learn more about tools every electrician should have.

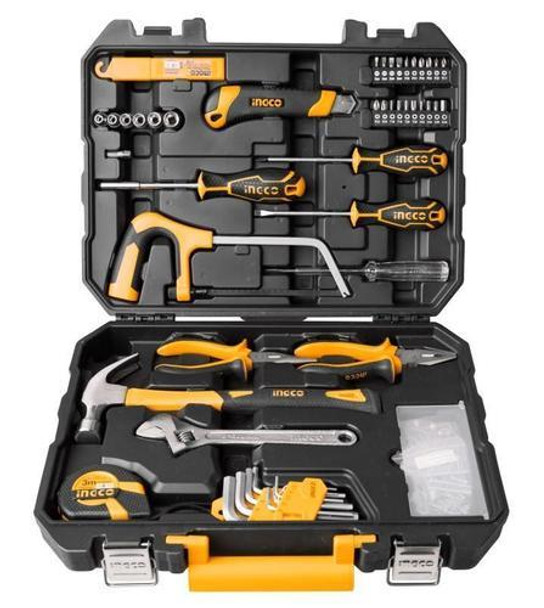

.Buy Online 117 PCS Tools Set INGCO HKTHP21171

GZ Industrial supplies offers a wide range of electrical tools which includes;

TAPE

A standard tape is used for all kinds of field measurements, such as setting heights for switches and outlets, centering lighting fixture boxes, and marking surfaces for cutouts.

HAMMER

A hammer is used to secure electrical boxes equipped with nail-on brackets to wall studs and other framing members in a home. You’ll also need one to drive wire staples when anchoring new electrical cable to framing members.

UTILITY KNIFE

A utility knife, or box cutter, is handy for cutting sheathing from non-metallic cable, to cut off electrical tape, and to open cardboard boxes.

SCREWDRIVERS

Electricians keep screwdrivers with them at all times, for removing and installing cover plates, outlets, switches, and many other devices.

Screwdrivers with insulating rubber jackets covering the handles are designed for better safety when doing electrical work.

STRAIGHT-BLADE SCREWDRIVERS

As with screwdrivers, you will likely need more than one size of straight-blade screwdrivers. If you have to choose just one, pick a medium blade; it will suit most projects.

Straight-blade screwdrivers are also available with insulated handles for better safety when doing electrical work.

Fiberglass Measuring Tape - INGCO HFMT8250

WRENCH

Wrenches are used to tighten hex-head screws, which are sometimes found on ceiling fans, light fixtures, and appliances. It's a good idea to own both a metric and a standard set of wrenches.

TONGUE-AND-GROOVE PLIERS

Tongue-and-groove pliers are known by many names, including channel-lock, groove joint, tongue-and-groove, and straight-jaw pliers. This tool is most often used for plumbing work, but a pair of tongue-and-groove pliers also has many uses for electrical projects. It will see frequent use for removing knockouts from metal electrical boxes, tightening cable clamps, and adjusting expansion-type ceiling fan boxes.

NON-CONTACT VOLTAGE TESTER

Perhaps the most important specialty electrical tool you can own is a voltage tester. A voltage tester is used for a quick safety check to make sure there's no voltage in an electrical wire or device before you start working on it. Non-contact voltage testers, powered by batteries, are the simplest and safest types of testers because they can detect electricity just by being near an outlet slot or wire.

This is a tool every DIYer needs in the toolbox. It will be used for virtually every home electrical repair project.

Ingco Autorange multimeter DM7504

WIRE STRIPPERS

Another essential electrical specialty tool for homeowners is a good pair of wire strippers. Wire strippers are used to cut and strip insulation from electrical wires. A wire stripper tool has a row of gauged holes for stripping wires of different sizes, and it usually includes cutting jaws for trimming the wire ends. Some types are combination tools that can also be used to crimp wires and to strip the vinyl jacket off NM cable.

Along with a voltage tester, this is perhaps the most important specialty electrical tool you can own. It makes sense to invest in a good set of wire strippers, as it will serve many functions.

NEEDLE-NOSE PLIERS

Another essential specialty electrical tool is a pair of needle-nose pliers (also called long-nose pliers). It will be used for bending and twisting wires whenever you are making screw-terminal connections. The long, narrow tip makes this a great tool for detailed work. Most needle-nose pliers also include cutting jaws for trimming wires.

LINESMAN PLIERS

A pair of linesman pliers is an electrician's do-it-all tool. It has a squared-off end that is great for twisting wires together, a center cutting blade for trimming wire, and a grip area between the handles for pulling wire.

Casual DIYers may be able to get by without this tool, but anyone who does regular electrical work will want to own a pair of linesman pliers.

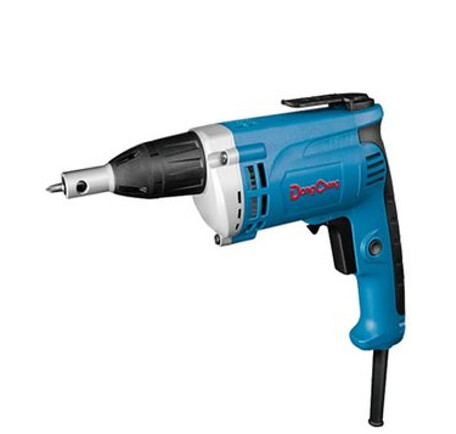

DongCheng-SCREWDRIVER-DPL6

DIAGONAL CUTTING PLIERS

Diagonal cutting pliers, sometimes called side snips or dikes, are used to cut wires. They are specially designed with a cutting edge that goes down to the tip of the jaws, allowing you to get into tight areas to trim wires. Some types can also have a built-in voltage detector to sense live wires. You can also find combination tools that include wire-stripping slots built into the handles.

This is a second-tier specialty tool: Casual DIYers may not need it, but those who do regular electrical work will find it very useful.

FISH TAPE

A fish tape is used to pull stranded or solid wire conductors through metal or PVC conduit. Cable lube is available to assist you in pulling the wires through the conduit. A fish tape can also be helpful when you are pulling NM cable through wall cavities.

This is a tool used when making wiring improvements, such as adding or extending circuits. Casual DIYers who are simply making electrical repairs or replacements rarely need a fish tape, but it is a good tool for more advanced DIYers to own.

VOLTMETER OR MULTIMETER

A voltmeter is used to read voltage levels and verify that circuits are “live” or off. Unlike a circuit tester, this tool gives you reading on how much voltage is being carried. More sophisticated forms of the tool are known as multimeters, and they can not only read voltage levels but also amperage, resistance, and DC voltage and amperage. They do, however, require practice to learn how to use them properly.

This specialty tool is used mostly by advanced DIYers and professional electricians. Casual DIYers may not need to own this tool, but those who do a lot of electrical work on appliances and electronics may find it essential.

WIRE CRIMPERS

Wire crimpers are used to crimp lugs or connection terminals onto wires. This tool is not often used for routine circuit repairs, but it has many uses when working with appliances or electronics. Many types can also be used to strip wire insulation.

For your affordable Electrical tools, electrical wire and cables please contact us today at www.gz-supplies.com

Buy Online 147pcs Tools Set
