Understanding Welding Consumables: A Beginner's Guide

Understanding Welding Consumables: A Beginner's Guide

Welding consumables encompass a diverse array of materials, including electrodes, wires, and fluxes, each playing a unique role in the welding journey. They are the catalysts that facilitate the fusion of metals, contributing to the strength, quality, and longevity of the welded joints.

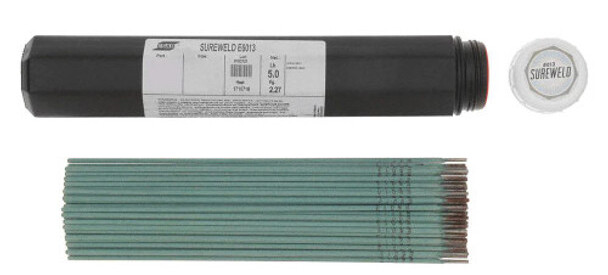

Esab Stick Welding Electrode 3/32 x 14in 5kg E6013 Sureweld series

Esab Stick Welding Electrode 3/32 x 14in 5kg E6013 Sureweld series

Electrodes, wires, and fluxes are integral components in the welding process, each serving a distinct purpose to ensure the success of metal fusion. Electrodes, commonly used in shielded metal arc welding (SMAW), function as conductors of electric current. They facilitate the creation of an electric arc between the electrode and the workpiece, generating the necessary heat for melting and fusing metals. Wires, prevalent in gas metal arc welding (GMAW) and flux-cored arc welding (FCAW), act as a continuous feed of filler material. They contribute to the formation of the weld bead, providing structural integrity and enhancing the mechanical properties of the joint. Fluxes play a crucial role in various welding processes, including submerged arc welding (SAW) and flux-cored welding. They serve as a protective barrier, preventing atmospheric contamination and oxidation of the molten metal during the welding process. Additionally, fluxes can influence the weld's characteristics, such as its shape and penetration, contributing to the overall quality of the weld. Together, these consumables collaborate harmoniously to produce strong, durable, and precise welds across various welding applications.

As we start this journey, it's crucial to understand how important welding consumables are in making good welds. Whether it's picking the right electrodes or using the correct fluxes, every decision about these materials affects how strong and reliable the final weld will be. In our exploration, we want to make things simpler, so you can see how the right choices with consumables can really improve your welding skills and take your craft to the next level.

Basics of Welding Consumables

1. Electrodes

Electrodes are conductive materials that play a key role in creating an electric arc necessary for welding. They come in various types, each designed for specific applications.

a. Classification and Characteristics:

Electrodes are classified based on their coating, material composition, and welding characteristics. The two primary classifications are:

  • Consumable Electrodes (Filler Metal): These are used in processes like gas metal arc welding (GMAW) and flux-cored arc welding (FCAW). They provide the filler material that joins the metals together.
  • Non-Consumable Electrodes: Commonly used in tungsten inert gas welding (TIG or GTAW) and plasma arc welding (PAW), these electrodes do not melt during welding and are primarily used to generate the arc.

The characteristics of consumable electrodes vary depending on the specific alloy and coating. For instance, certain electrodes are suitable for welding ferrous metals, while others are better suited for non-ferrous metals.

b. Electrode Coating:

Electrode coatings are crucial for enhancing the welding process and the quality of the weld. The coating serves multiple purposes, including stabilizing the arc, adding alloying elements to the weld pool, and shielding the weld from atmospheric contaminants.

  • Cellulose Electrodes: Known for deep penetration and high-quality welds, cellulose-coated electrodes are often used in shielded metal arc welding (SMAW) for applications like pipeline welding.
  • Rutile Electrodes: These electrodes provide a stable arc and produce welds with good mechanical properties. They are commonly used in general-purpose welding.
  • Basic Electrodes: With a low-hydrogen coating, basic electrodes are ideal for welding high-strength steels, offering excellent mechanical properties and reduced hydrogen-induced cracking.

c. Common Types:

Electrodes come in various types to meet the diverse needs of welding projects. Common types include:

  • 6010 Electrodes: Known for deep penetration and ideal for root passes in pipeline welding.
  • 7018 Electrodes: Suitable for general-purpose welding with low to moderate penetration and a clean appearance.
  • 308L Electrodes: Designed for welding stainless steel, providing excellent corrosion resistance.

Vecan Cable - 2.5mm Single Core (Copper)

Vecan Cable - 2.5mm Single Core (Copper)

2. Welding Wires

Welding wires are a key component in many welding processes, providing the filler metal needed to create strong, durable welds. There are several types of welding wires, each with its own set of characteristics and applications:

a. Solid Wires

Solid wires are uniform, continuous wires used primarily in Gas Metal Arc Welding (GMAW) and Tungsten Inert Gas (TIG) welding. They require a shielding gas to protect the weld pool from contamination.

  • Advantages: They offer a clean, spatter-free welding experience with good arc stability and are well-suited for welding thin materials.
  • Applications: Commonly used in automotive repair, manufacturing, and construction where a high-quality finish is required.

b. Flux-Cored Wires

Flux-cored wires consist of a tubular wire filled with flux. They can be used with or without a shielding gas, depending on the type of flux-cored wire (self-shielded or gas-shielded).

  • Advantages: These wires are known for their versatility, higher deposition rates, and ability to weld through contaminants such as rust or paint.
  • Applications: Ideal for construction and heavy equipment manufacturing, especially in outdoor environments where wind may disrupt gas shielding.

c. Metal-Cored Wires

Metal-cored wires are composite wires with a metal sheath and a powdered metal core. They are used in GMAW and offer a combination of the benefits of solid and flux-cored wires.

  • Advantages: They provide high deposition rates, excellent weld quality, and increased travel speeds. They also produce less spatter and fumes compared to other wire types.
  • Applications: Frequently used in industries that require high productivity and efficiency, such as shipbuilding, railcar manufacturing, and heavy fabrication.

3. Fluxes

Fluxes play a vital role in the welding process, serving multiple purposes to ensure the quality and integrity of the weld. Here’s an overview of their functions and the different types available:

a. Purpose and Functions

  • Protecting the Weld Pool: Fluxes create a protective barrier over the weld pool, shielding it from atmospheric gases like oxygen, nitrogen, and hydrogen that can cause weld defects.
  • Stabilizing the Arc: They help to stabilize the electric arc during the welding process, allowing for a more consistent and controlled weld.
  • Removing Impurities: Fluxes act as a cleaning agent by dissolving oxides and other impurities on the metal surface, which float to the top of the weld pool and form slag that can be easily removed.
  • Adding Alloying Elements: Some fluxes contain alloying elements that are transferred to the weld metal, enhancing its mechanical properties and corrosion resistance.

b. Types of Fluxes

  • Basic Fluxes: These are commonly used for welding steels and provide excellent toughness and crack resistance. They are suitable for high-stress applications and thick sections.
  • Acidic Fluxes: Acidic fluxes are typically used for welding non-ferrous metals and offer good cleaning action. They are not recommended for steels due to the potential for hydrogen-induced cracking.
  • Neutral Fluxes: Neutral fluxes are versatile and can be used with a variety of metals. They provide a balance between cleaning action and mechanical properties.
  • Active Fluxes: Active fluxes contain elements that react with the metal to produce specific effects, such as deoxidizing or denitriding. They are used for specialized applications where control over the weld chemistry is crucial.
  • Inert Fluxes: Inert fluxes do not react with the metal and are primarily used for shielding purposes. They are often used in processes like Tungsten Inert Gas (TIG) welding.

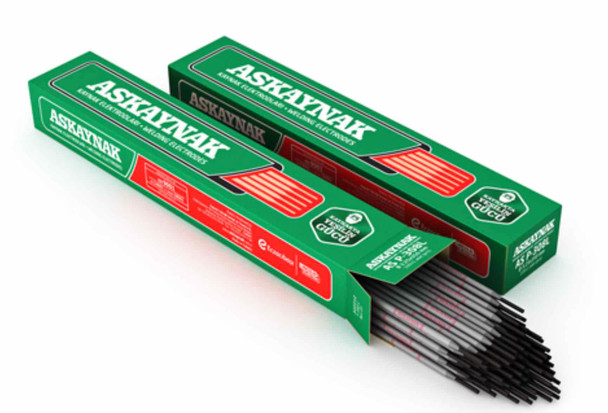

Stainless Steel electrode ASKAYNAK-AS-P309L-17 5kg pack

Stainless Steel electrode ASKAYNAK-AS-P309L-17 5kg pack

Other Key Components and Materials

1. Steel Alloys

  • Characteristics: Steel alloys are known for their strength, durability, and versatility. They can be alloyed with elements like carbon, manganese, nickel, and chromium to enhance their mechanical properties and resistance to wear, corrosion, and high temperatures.
  • Applications: Steel alloys are widely used in construction, automotive, manufacturing, and heavy industry. They are suitable for structural components, machinery parts, and tools that require high strength and toughness.

2. Aluminum Alloys

  • Characteristics: Aluminum alloys are lightweight, corrosion-resistant, and have good thermal and electrical conductivity. They are often alloyed with elements such as silicon, magnesium, and copper to improve their strength and formability.
  • Applications: Aluminum alloys are commonly used in aerospace, transportation, and packaging. They are ideal for aircraft structures, vehicle parts, and containers due to their low density and high corrosion resistance.

3. Specialty Alloys

  • Characteristics: Specialty alloys include materials like titanium, magnesium, and nickel-based alloys. These materials offer unique properties such as high strength-to-weight ratios, excellent corrosion resistance, and the ability to withstand extreme environments.
  • Applications: Specialty alloys are used in demanding applications such as aerospace, medical devices, and chemical processing. They are chosen for components that require exceptional performance, such as jet engine parts, surgical implants, and chemical reactors.

Applications of Welding Consumables

Industries And Sectors

Welding consumables find extensive applications across various industries and sectors due to their versatile nature and compatibility with different materials. They are essential for ensuring the quality and strength of the welds, as well as preventing defects. Some of the primary sectors where welding consumables are crucial include:

  • Building and Construction: Welding consumables are used for fabricating structural components, joining metals, and creating supportive frameworks for buildings and infrastructure projects.
  • Automotive: Welding consumables play a vital role in vehicle manufacturing, aiding in the assembly of car frames, engine components, exhaust systems, and other structural elements.
  • Heavy Engineering: Welding consumables are used to fabricate and repair heavy-duty machinery and equipment, such as boilers, turbines, generators, compressors, pumps, and valves.
  • Shipbuilding and Marine Industry: Welding consumables are essential in constructing ships, boats, and other marine vessels, contributing to their structural integrity and longevity in harsh maritime environments.
  • Oil and Gas: Within the oil and gas sector, welding consumables are used for pipelines, storage tanks, and other critical infrastructure components that require resistance to corrosive elements and extreme temperatures.
  • Aerospace: Precision welding consumables are indispensable in the aerospace sector, ensuring the fabrication of aircraft components with high strength, durability, and adherence to strict safety standards.

Welding Processes

Welding consumables can be used with different welding processes, depending on the type of metal, joint configuration, and welding position. Some of the common welding processes that use welding consumables are:

Shielded Metal Arc Welding (SMAW):

SMAW, also known as stick welding, is a manual welding process that uses a coated electrode to create an electric arc between the electrode and the workpiece. The coating of the electrode provides filler metal, shielding gas, and slag to protect the weld pool from the air. SMAW is widely used for welding carbon steel, low-alloy steel, stainless steel, and cast iron in various positions and thicknesses.

Gas Metal Arc Welding (GMAW):

Also referred to as MIG (Metal Inert Gas) welding, GMAW is a welding process that uses a continuously fed wire electrode to create an electric arc between the electrode and the workpiece. The wire electrode provides filler metal, while an external gas source provides shielding gas to protect the weld pool from the air. GMAW is commonly used for welding mild steel, low-alloy steel, stainless steel, aluminum, and copper in various positions and thicknesses.

Flux-Cored Arc Welding (FCAW):

FCAW uses a tubular wire electrode that contains a flux core to create an electric arc between the electrode and the workpiece. The flux core provides filler metal, shielding gas, and slag to protect the weld pool from the air. FCAW is mainly used for welding carbon steel, low-alloy steel, and stainless steel in various positions and thicknesses, especially in outdoor and windy conditions.

Tungsten Inert Gas Welding (TIG):

This is a manual welding process that uses a non-consumable tungsten electrode to create an electric arc between the electrode and the workpiece. The tungsten electrode provides arc stability, while an external gas source provides shielding gas to protect the weld pool from the air. TIG is widely used for welding high-quality and precision welds on thin metals, such as aluminum, magnesium, titanium, and nickel alloys.

Submerged Arc Welding (SAW):

This is an automatic welding process that uses a continuously fed wire electrode to create an electric arc between the electrode and the workpiece. The wire electrode provides filler metal, while a granular flux covers the weld pool and protects it from the air. SAW is mainly used for welding thick sections of carbon steel, low-alloy steel, and stainless steel in flat or horizontal positions.

Maxmech Inverter Welding Machine TIG/MMA 400

Maxmech Inverter Welding Machine TIG/MMA 400

Factors Influencing Selection

The selection of welding consumables is a critical decision that affects the quality, strength, and durability of the weld. Several factors must be considered to ensure the best results:

1. Material Compatibility

The choice of welding consumables is significantly influenced by the materials being joined. Different metals and alloys require specific consumables that match their composition, ensuring optimal weld quality and strength. Factors to consider include the base metal type, thickness, and the need for filler material that complements the properties of the metals being welded. For instance, stainless steel welding needs consumables designed explicitly for stainless steel to prevent corrosion and maintain mechanical properties.

2. Welding Process

Each welding process has its unique characteristics and requirements. The selection of welding consumables is influenced by the chosen welding technique. For instance, SMAW uses coated electrodes, while GMAW uses solid or metal-cored wires. The specific process dictates the type of consumables, such as electrodes, wires, or fluxes, necessary to achieve the desired weld quality and efficiency.

3. Joint Requirements

Understanding the joint design and its intended application is crucial in selecting the right welding consumables. Factors such as joint configuration, accessibility, required strength, and weld appearance influence the consumable choice. For instance, a fillet weld might require different consumables compared to a butt weld due to the differing geometry and load-bearing capacity needed.

4. Environmental Considerations

Environmental factors play a pivotal role in selecting welding consumables. Considerations such as the presence of moisture, wind, temperature variations, and the need for specific shielding gases impact consumable choice. For instance, in outdoor welding, consumables that are resistant to wind and moisture, such as those used in FCAW, may be preferred. Additionally, consumables must be chosen based on their ability to withstand the service environment of the welded component, such as high temperatures or corrosive conditions.

Proper Handling and Storage

Proper handling and storage of welding consumables are crucial for maintaining their quality and performance. Here are some guidelines to ensure that consumables are kept in optimal condition:

Storage Conditions

  • Temperature and Humidity: Store consumables in a dry, controlled environment where temperature and humidity levels are consistent. Extreme temperatures and high humidity can affect the flux and coating of electrodes, leading to poor weld quality.
  • Shelving and Packaging: Use proper shelving that keeps consumables off the ground and organized. Original packaging should be maintained as long as possible to protect against environmental factors.

Prevention of Contamination

  • Clean Storage Area: Ensure that the storage area is free from dust, grease, and other contaminants that could transfer to the consumables and affect the weld.
  • Handling Practices: Use clean gloves when handling consumables to prevent oils from hands from contaminating them. Open only the necessary quantity of consumables to minimize exposure to the environment.

Safety Measures

  • Labeling and Documentation: Clearly label all consumables with their type and specifications. Keep a record of their shelf life and usage to prevent using expired or degraded materials.
  • Fire Safety: Store consumables away from sources of ignition, as some materials can be flammable or combustible. Ensure that fire safety equipment is readily available and that storage complies with local fire codes.

By adhering to these guidelines, you can preserve the integrity of welding consumables and contribute to the overall safety and success of welding operations. Proper handling and storage not only extend the life of consumables but also help in achieving consistent, high-quality welds.

Ingco Electrode Holder - WAH10008

Ingco Electrode Holder - WAH10008

Best Practices in Using Welding Consumables

To ensure the highest quality welds and the most efficient use of welding consumables, it is important to follow best practices throughout the welding process:

Preparation and Inspection

  • Material Preparation: Clean the base materials thoroughly to remove any contaminants such as oil, rust, or paint that could affect the weld quality.
  • Consumable Inspection: Before use, inspect the consumables for any signs of damage or degradation, such as moisture absorption or cracks in the coating.
  • Equipment Calibration: Calibrate welding equipment and machines according to the manufacturer's recommendations. Proper calibration ensures consistent and accurate performance during welding operations.

Techniques for Different Consumables

  • Electrode Angle and Movement: For SMAW, maintain the correct electrode angle and movement speed to ensure proper penetration and bead formation.
  • Wire Feeding: In GMAW and FCAW, ensure consistent wire feeding to prevent issues like birdnesting or burnback.
  • Shielding Gas Flow: For TIG and GMAW, regulate the flow of shielding gas to protect the weld pool from atmospheric contamination.

Troubleshooting Common Issues

  • Porosity: If you encounter porosity in the weld, check for contaminants on the base material or improper gas shielding.
  • Spatter: Excessive spatter can be addressed by adjusting the voltage, amperage, or wire feed speed, as well as ensuring proper contact tip distance.
  • Cracking: To prevent cracking, use preheating techniques when necessary and choose consumables with the appropriate tensile strength.

Related Articles

WHAT ARE WELDING CONSUMABLES

Different Types of Welding processes in Nigeria

Lead to buy a good welding machine in Nigeria

Conclusion

In conclusion, understanding the significance of welding consumables is pivotal for ensuring safe, efficient, and high-quality welding practices. Throughout this exploration, we've delved into the crucial aspects surrounding welding consumables, shedding light on their diverse applications, factors influencing selection, proper handling, and the role they play in welding processes.

Recapping key points, we've learned about the wide array of welding consumables used across industries, from solid wires to flux-cored wires and metal-cored wires. We've explored the importance of factors such as material compatibility, joint requirements, and environmental considerations in selecting the right consumables for specific welding tasks. Moreover, we've highlighted best practices in their use, emphasizing the significance of preparation, techniques, and troubleshooting to achieve optimal weld quality.

As technology and industrial demands evolve, continued learning remains essential. Advancements in materials, processes, and welding consumables continue to revolutionize the field, requiring welders and professionals to stay updated with the latest innovations. In acknowledging the pivotal role of welding consumables, we encourage a steadfast commitment to learning, improvement, and adherence to best practices. By valuing the significance of these consumables and investing in continuous education, we pave the way for safer, more efficient, and higher-quality welding endeavors that propel us toward a future built on precision, innovation, and reliability. If you need any help with regards to choosing or making a purchase, feel free to Contact Our Experts Today.
