In recent years, the advancement of TIG welding machines has significantly contributed to achieving superior welds. These machines incorporate innovative technologies and features that enhance weld quality, productivity, and operator convenience. By understanding and utilizing the capabilities of advanced TIG welding machines, industries can benefit from improved efficiency, reduced rework, and increased overall welding performance.

Tungsten Inert Gas (TIG) welding, also known as Gas Tungsten Arc Welding (GTAW), is a widely used welding process in various industries. It involves the use of a non-consumable tungsten electrode to produce the weld and an inert gas, such as argon or helium, to shield the welding area from atmospheric contamination. TIG welding offers several advantages, including precise control, high-quality welds, and versatility, making it a preferred choice in many applications.

TIG welding plays a crucial role in a wide range of industries, including aerospace, automotive, construction, petrochemical, power generation, and more. Its significance stems from several key advantages it offers over other welding processes:

1. High-quality welds:

TIG welding allows precise control over heat input and the welding process, resulting in high-quality welds with excellent mechanical properties. The process produces clean, visually appealing welds with minimal spatter and distortion, making it suitable for applications with strict aesthetic and functional requirements.

2. Versatility:

TIG welding can be used to weld various metals, including steel, stainless steel, aluminum, copper, titanium, and their alloys. This versatility makes it a preferred choice for joining dissimilar metals, such as aluminum to stainless steel, which is often encountered in industries like automotive manufacturing and fabrication.

3. Welding thin materials:

TIG welding excels in joining thin materials due to its precise control and low heat input. It allows for the welding of thin sheet metal as thin as 0.5 mm, making it ideal for applications where maintaining material integrity is crucial, such as in the aerospace industry.

4. Welding in all positions:

TIG welding is suitable for welding in all positions, including flat, horizontal, vertical, and overhead. This flexibility enables welders to work in challenging positions and produce high-quality welds in various orientations, offering increased adaptability in complex welding projects.

5. No flux or filler material required:

Unlike other welding processes, TIG welding does not require a flux or filler material. This eliminates the risk of slag inclusions and reduces the possibility of weld defects. It is particularly advantageous when working with reactive metals like titanium, where weld contamination must be minimized.

Maxmech Inverter Welding Machine TIG/MMA-250

Role of Advanced TIG Welding Machines in Achieving Superior Welds

Advanced TIG welding machines incorporate various features and technologies that significantly contribute to achieving superior welds. These machines empower welders with greater control, automation, and monitoring capabilities, resulting in improved weld quality, efficiency, and productivity. Here are some key aspects of advanced TIG welding machines:

1. Inverter technology:

Modern TIG welding machines utilize inverter technology, which offers benefits such as increased energy efficiency, precise control over the welding parameters, and compact size. Inverters provide a stable and consistent arc, allowing for better control of the heat input, arc length, and penetration, ultimately leading to superior weld quality.

2. Pulsed TIG welding:

Advanced TIG machines often incorporate pulsed welding capabilities. Pulsed TIG welding involves alternating the welding current between high and low levels, creating a pulsing effect. This feature provides better control over the heat input, reduces the heat-affected zone, and minimizes distortion. It is particularly useful when welding thin materials and critical components where heat control is essential.

3. Advanced arc starting and stability:

Advanced TIG welding machines offer improved arc starting mechanisms, such as high-frequency starting or lift arc starting. These features ensure a reliable and stable arc initiation, minimizing the risk of tungsten electrode contamination or weld defects. Stable arcs contribute to better weld bead formation and control, resulting in superior weld quality.

4. Enhanced control interfaces:

Modern TIG machines often come with user-friendly control interfaces, allowing welders to adjust welding parameters with precision. These interfaces provide options for setting the desired current, pulse frequency, duration, slope-up and slope-down times, and post-flow gas settings. This level of control enables welders to fine-tune the welding process to achieve optimal results for different materials and applications.

5. Weld monitoring and automation:

Some advanced TIG welding machines incorporate monitoring systems that provide real-time feedback on key welding parameters, such as arc voltage, current, and travel speed. This monitoring helps welders maintain consistency throughout the welding process and detect any deviations or anomalies that may affect the weld quality. Furthermore, automation features, such as programmable memory settings and welding sequences, streamline repetitive welding tasks, reduce human error, and ensure consistent weld quality.

6. Improved gas management:

TIG welding requires an inert gas shield to protect the weld area from atmospheric contamination. Advanced TIG machines often feature advanced gas management systems that provide precise control over gas flow rates, pre-flow and post-flow times, and gas purging functions. These features ensure optimal gas coverage and minimize the risk of porosity or oxidation in the weld, resulting in superior weld integrity.

7. Integration with welding technology advancements:

Advanced TIG welding machines can be integrated with other technological advancements in the welding industry. For example, some machines are compatible with automated welding systems, robotic arms, or welding positioners, allowing for efficient and precise welds in complex or repetitive applications. Integration with data logging and analysis systems enables the collection and analysis of welding data for quality control and process optimization purposes.

Power flex Argon Arc welder Tig welding Machine Tig wsm 315

Understanding TIG Welding

The TIG (Tungsten Inert Gas) welding process, also known as Gas Tungsten Arc Welding (GTAW), is a widely used welding technique that offers numerous benefits. In TIG welding, a non-consumable tungsten electrode is used to produce the weld, and an inert gas, such as argon or helium, is employed to shield the welding area from atmospheric contamination.

The TIG welding process offers several advantages:

1. Superior weld quality:

TIG welding allows for precise control over the heat input and welding parameters, resulting in high-quality welds. The process produces clean, visually appealing welds with minimal spatter and distortion. This makes TIG welding particularly suitable for applications with strict aesthetic and functional requirements, such as automotive, aerospace, and food processing industries.

2. Versatility:

TIG welding is versatile and can be used to join a wide range of metals, including steel, stainless steel, aluminum, copper, titanium, and their alloys. This versatility makes TIG welding an ideal choice for applications involving dissimilar metals, such as joining aluminum to stainless steel. It is also suitable for welding non-ferrous metals, making it indispensable in industries like electronics and electrical equipment manufacturing.

3. Precise heat control:

TIG welding allows precise control over the heat input, arc length, and welding parameters, which is crucial when working with thin materials or heat-sensitive components. The welder can adjust the welding current, gas flow rate, and other settings to achieve the desired results, ensuring minimal distortion and heat-affected zone (HAZ).

4. No flux or filler material required:

Unlike some other welding processes, TIG welding does not require the use of a flux or filler material. This eliminates the risk of slag inclusions and reduces the possibility of weld defects. TIG welding is particularly advantageous when working with reactive metals like titanium, where weld contamination must be minimized.

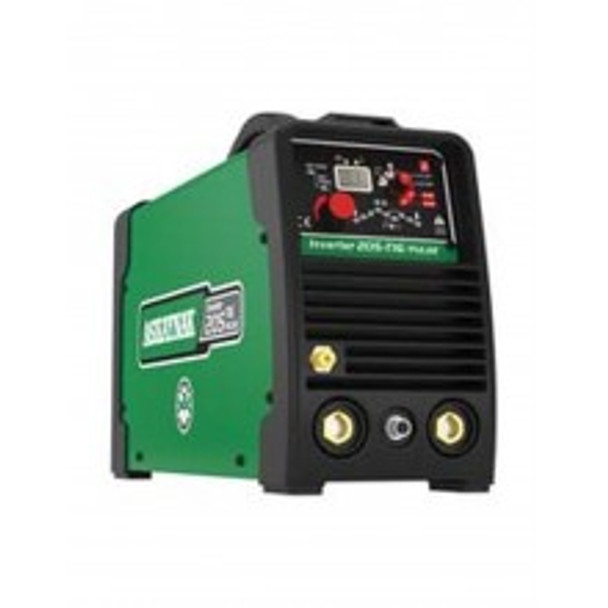

Inverter 205-TIG/PULSE Askaynak

TIG welding is renowned for its versatility and precision, making it suitable for various applications.

1. Versatility:

TIG welding can be performed in various positions, including flat, horizontal, vertical, and overhead. This flexibility allows welders to work in challenging positions and produce high-quality welds in different orientations. Whether it's welding pipes, sheet metal, or intricate components, TIG welding can handle a wide range of applications.

2. Precision:

TIG welding offers exceptional control and precision. The welder can control the heat input, arc length, and filler metal deposition with great accuracy. This precision is especially beneficial when working on thin materials or complex joint configurations, as it allows for controlled penetration and minimizes the risk of burn-through or warping.

3. Welding of dissimilar metals:

TIG welding is particularly suitable for joining dissimilar metals due to its versatility and precise heat control. It enables the welding of combinations like aluminum to stainless steel, copper to brass, or titanium to stainless steel. This capability is valuable in industries where the joining of different materials is required, such as automotive manufacturing, aerospace, and fabrication.

4. Fine weld bead control:

TIG welding enables welders to create fine, well-controlled weld beads. The process allows for precise manipulation of the welding parameters, resulting in consistent and aesthetically pleasing welds. This makes TIG welding suitable for applications where appearance is critical, such as decorative metalwork, architectural structures, or high-end consumer products.

Inverter welding For TIG and SMAW 270TP Lincoln

TIG welding is suitable for a wide range of materials and applications:

1. Steel and stainless steel:

TIG welding is commonly used for welding carbon steel and stainless steel components. It is suitable for various applications, including fabrication, structural welding, pipe welding, and repair work. TIG welding provides excellent control over the heat input, minimizing distortion and ensuring strong, high-quality welds.

2. Aluminum and its alloys:

TIG welding is widely employed for welding aluminum and its alloys, such as 6061 or 5052. Aluminum is commonly used in industries like automotive, aerospace, and marine due to its lightweight and corrosion-resistant properties. TIG welding allows for precise control over the welding parameters, producing clean and strong welds.

3. Copper and brass:

TIG welding is utilized for joining copper and brass components in applications such as plumbing, electrical equipment, and heat exchangers. TIG welding ensures a clean, strong bond without the need for flux or filler material, maintaining the desirable properties of copper and brass.

4. Titanium and its alloys:

TIG welding is commonly used for welding titanium and its alloys, which are widely used in the aerospace, medical, and chemical industries. TIG welding provides the necessary control over the heat input to prevent contamination and ensure high-quality welds in titanium applications.

5. Thin materials:

TIG welding excels in welding thin materials due to its precise control and low heat input. It is commonly used in industries such as electronics, where delicate components and thin sheets require accurate and controlled welding without causing damage or distortion.

Maxmech Inverter Welding Machine TIG/MMA-400

Key Considerations when Choosing an Advanced TIG Welding Machine

When selecting an advanced TIG welding machine, several key considerations come into play to ensure optimal performance and suitability for specific welding applications. Two important factors to consider are power output and amperage range:

1. Power output:

The power output of the TIG welding machine determines its ability to handle various welding tasks. Higher power output enables welding thicker materials and provides better penetration and fusion. It is crucial to match the power output of the machine to the specific welding requirements of the intended applications. Considering the maximum thickness and type of materials to be welded is essential to choose a machine that can deliver the necessary power for successful welds.

2. Amperage range:

The amperage range of the TIG welding machine indicates its versatility in handling different welding tasks. It is important to select a machine that offers a wide amperage range to accommodate various materials and thicknesses. A broader range allows for greater flexibility in welding applications, from thin sheet metal to heavy-duty fabrication. Ensure that the machine's amperage range covers the requirements of the intended welding projects.

3. Duty cycle:

The duty cycle represents the percentage of time within a 10-minute period that a welding machine can operate at a specific amperage without overheating. It is essential to understand the duty cycle rating of the machine as it directly relates to its reliability and performance. A higher duty cycle rating means the machine can operate continuously for longer periods without overheating. Consider the specific welding requirements and the expected duration of welding to choose a machine with an appropriate duty cycle rating.

4. Cooling mechanisms:

TIG welding machines generate heat during operation, and efficient cooling mechanisms are necessary to maintain optimal performance and prevent overheating. Advanced TIG welding machines often incorporate built-in cooling systems, such as fans or liquid cooling, to dissipate heat effectively. The cooling mechanisms should be robust enough to handle the heat generated during extended periods of welding at high amperages. Reliable cooling systems contribute to the longevity of the machine and ensure consistent performance.

5. Portability:

Consider the portability of the advanced TIG welding machine, especially if mobility is required in welding operations. Lightweight and compact machines with built-in handles or wheels make transportation and maneuverability easier. This is particularly beneficial for job sites or workshops where the machine needs to be moved frequently or used in different locations.

6. Ease of use:

Look for advanced TIG welding machines that offer user-friendly interfaces and controls. Intuitive control panels and clear displays simplify the setup and adjustment of welding parameters. Machines with straightforward menus and digital interfaces allow for easy navigation and customization of welding settings. Simplified operation reduces the learning curve and enhances efficiency in welding operations.

7. Ergonomic features:

Consider the ergonomics of the machine, including the design of the torch, control knobs, and access to critical components. Comfortable handles, well-positioned controls, and ergonomic torch designs contribute to reduced operator fatigue and improved welding precision. Ergonomic features enhance user comfort and control, ensuring consistent weld quality during extended welding sessions.

8. Advanced controls:

Look for advanced TIG welding machines that offer a wide range of control options. These can include pulse frequency, duty cycle settings, slope-up and slope-down times, and crater fill options. Advanced control features enable welders to fine-tune the welding process, optimize settings for specific materials, and achieve desired weld characteristics. The availability of adjustable parameters allows for customization and versatility in welding operations.

9. Waveform options:

Some advanced TIG welding machines provide waveform options, such as square wave, sine wave, or advanced AC waveforms. These waveforms allow for precise control over the welding process, especially when welding aluminum or other non-ferrous metals. Different waveforms offer variations in heat input, arc stability, and cleaning action, enabling welders to achieve specific results for different materials and welding applications.

Considering the availability of advanced controls and waveform options ensures that the TIG welding machine can adapt to a wide range of welding tasks and provide the desired weld quality.

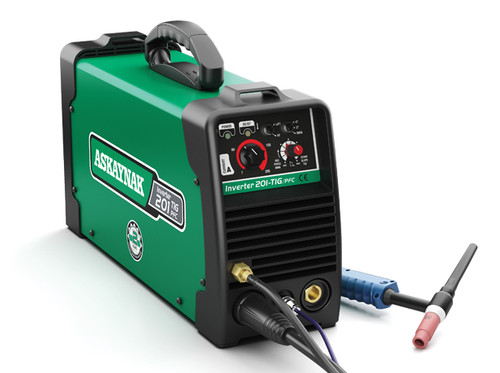

Askaynak Tig Argon Welding Inverter machine 201 TIG PFC

Tips for Maximizing Performance with an Advanced TIG Welding Machine

A. consider the following setup and calibration tips:

1. Familiarize yourself with the machine: Read the user manual thoroughly to understand the features, controls, and capabilities of the advanced TIG welding machine. Familiarity with the machine's functionalities allows for proper utilization and adjustment of settings.
2. Optimize shielding gas flow: Ensure the proper flow rate of shielding gas by referring to the manufacturer's recommendations. Proper gas flow protects the weld area from atmospheric contamination and promotes optimal weld quality.
3. Tungsten electrode selection: Choose the appropriate type and size of tungsten electrode based on the material being welded. Different materials may require different electrode compositions and diameters. Consult welding reference charts or the manufacturer's guidelines to select the right tungsten electrode for the application.
4. Electrode grinding and preparation: Properly grind and prepare the tungsten electrode before welding. A sharp and properly shaped electrode tip enhances arc stability and ensures consistent weld penetration. Avoid contamination of the electrode during handling and storage.
5. Calibration and parameter adjustments: Take the time to calibrate the advanced TIG welding machine according to the welding requirements. Adjust parameters such as amperage, pulse frequency, arc duration, and gas flow to match the material thickness, joint design, and desired weld characteristics.

B. Achieving precise welds with advanced TIG welding machines involves employing proper techniques and utilizing the machine's capabilities:

1. Arc initiation and stability: Practice proper arc initiation techniques to maintain a stable arc. For high-frequency arc starting, ensure the tungsten electrode is in contact with the workpiece before initiating the arc. Lift arc starting requires a clean and properly prepared electrode tip to establish a stable arc.
2. Torch manipulation and travel speed: Mastering torch manipulation techniques is crucial for achieving precise welds. Maintain a consistent torch-to-work distance and move the torch smoothly along the joint to ensure uniform heat distribution and weld bead formation. Control the travel speed to prevent overheating or insufficient penetration.
3. Pulse welding for heat control: Utilize the pulse welding capability of the advanced TIG welding machine to control heat input, especially when welding thin materials or critical components. Adjust the pulse frequency and duration to achieve the desired heat control, reducing the risk of distortion, burn-through, or lack of fusion.
4. Filler metal deposition: Pay attention to the technique of adding filler metal during TIG welding. Ensure proper filler metal size and feeding to maintain the desired weld profile and prevent excessive buildup or undercutting. Practice consistent and controlled filler metal deposition to achieve high-quality welds.

C. Ongoing training and skill development are crucial for maximizing performance with an advanced TIG welding machine:

1. Attend training programs: Participate in welding training programs or workshops specifically focused on TIG welding techniques and advanced machine operation. These programs provide valuable insights, hands-on practice, and guidance to enhance your skills and proficiency.
2. Practice and experimentation: Regularly practice TIG welding techniques and experiment with different parameters, joint configurations, and materials. This allows you to gain a deeper understanding of the capabilities of the advanced TIG welding machine and develop your skills to achieve precise and high-quality welds.
3. Stay updated with industry advancements: Keep up-to-date with the latest advancements and techniques in TIG welding. Follow industry publications, online forums, and attend welding conferences to stay informed about new developments, processes, and equipment. Continuous learning helps you adapt to new technologies and improve your performance with advanced TIG welding machines.

Maintenance and Care for Long-Term Performance

A. Regular maintenance is essential to ensure the long-term performance and reliability of advanced TIG welding machines:

1. Follow manufacturer guidelines: Adhere to the manufacturer's maintenance recommendations and guidelines provided in the user manual. These guidelines may include routine inspections, cleaning procedures, lubrication requirements, and scheduled maintenance tasks.
2. Inspect and clean regularly: Regularly inspect the machine for any signs of wear, damage, or loose connections. Clean the machine and its components, such as torches, cables, and gas fittings, to remove debris, dust, and spatter. Ensure proper ventilation to prevent overheating.
3. Replace consumables: Replace consumable parts, such as tungsten electrodes, gas nozzles, collets, and collet bodies, as needed. Worn or damaged consumables can affect weld quality and compromise the performance of the machine.

B. Here are some maintenance tips and best practices for extending the lifespan of the advanced TIG welding machine:

1. Cooling system maintenance: If the machine has a built-in cooling system, regularly clean or replace filters, check coolant levels, and ensure proper flow. Overheating can lead to equipment damage and reduced performance.
2. Cable and connection maintenance: Inspect cables, connectors, and electrical connections regularly for signs of wear, damage, or loose connections. Tighten loose connections and repair or replace damaged cables or connectors promptly.
3. Calibration and calibration checks: Periodically calibrate the advanced TIG welding machine to ensure accurate and consistent performance. Perform calibration checks and adjust settings as necessary to maintain optimal weld quality.
4. Environment considerations: Protect the advanced TIG welding machine from harsh environmental conditions, excessive moisture, and dust. If the machine is not in use for an extended period, store it in a clean, dry area, and follow proper storage procedures outlined by the manufacturer.

C. Safety and adherence to manufacturer guidelines are of utmost importance when operating and maintaining an advanced TIG welding machine:

1. Personal protective equipment (PPE): Always wear appropriate PPE, such as welding helmets, gloves, aprons, and safety glasses, to protect yourself from potential hazards during welding operations.
2. Follow safety protocols: Adhere to safety protocols and guidelines provided by the manufacturer, as well as general welding safety practices. Ensure proper ventilation in the welding area and be aware of potential electrical and fire hazards.
3. Consult the manufacturer: If you have any questions or concerns about the maintenance or operation of the advanced TIG welding machine, contact the manufacturer for guidance and support. They can provide specific recommendations and address any technical issues you may encounter.

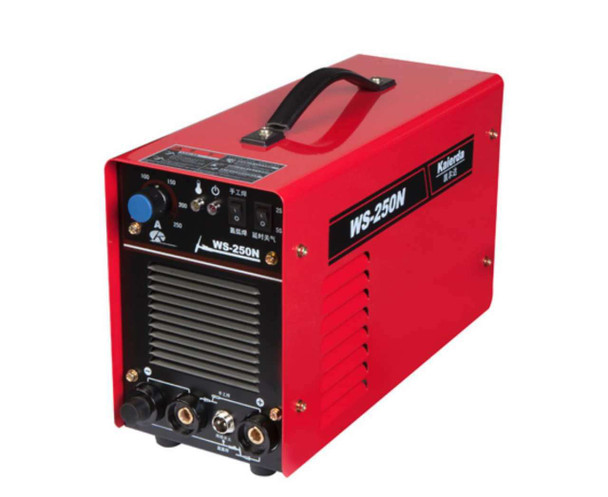

Kaierda Tig Welding machine WS250N

Conclusion

 Advanced TIG welding machines provide numerous benefits that contribute to improved weld quality, productivity, and efficiency. These machines leverage advanced technologies, such as inverter technology, pulsed TIG welding, and advanced arc starting mechanisms, to enhance the welding process. With precise control over welding parameters, monitoring systems, and integration with other technological advancements, advanced TIG welding machines empower welders to achieve exceptional results and meet the demanding requirements of various applications.

It is crucial to recognize the potential that advanced TIG welding machines offer. By investing in these machines and exploring their capabilities, welders can unlock new possibilities and unleash their welding potential. The precise control, versatility, and customization options provided by these machines enable welders to tackle a wide range of welding tasks with superior results. Ongoing training, skill development, and adherence to best practices ensure that welders can make the most out of advanced TIG welding machines and continuously enhance their welding skills.

In this comprehensive discussion, we explored the importance of TIG welding in various industries and highlighted the role of advanced TIG welding machines in achieving superior welds. We discussed the versatility and precision of TIG welding, as well as the types of materials and applications suitable for this welding process. Furthermore, we delved into the benefits of advanced TIG welding machines, including their features, capabilities, and the advantages they offer in terms of control, customization, and automation.
